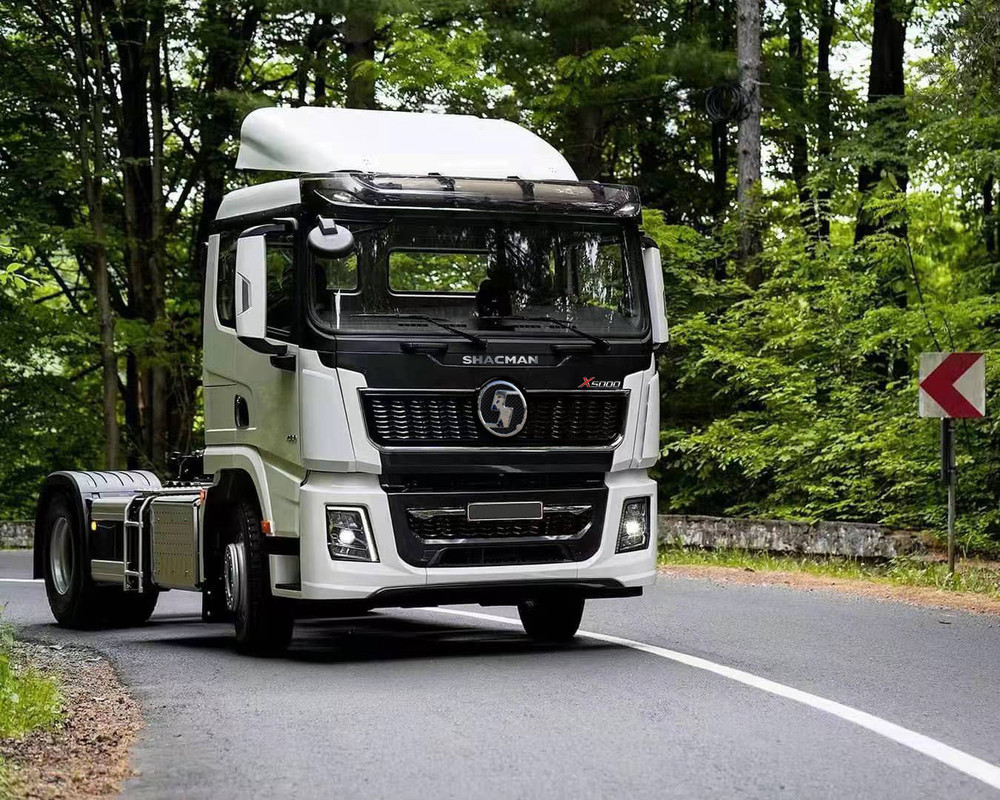

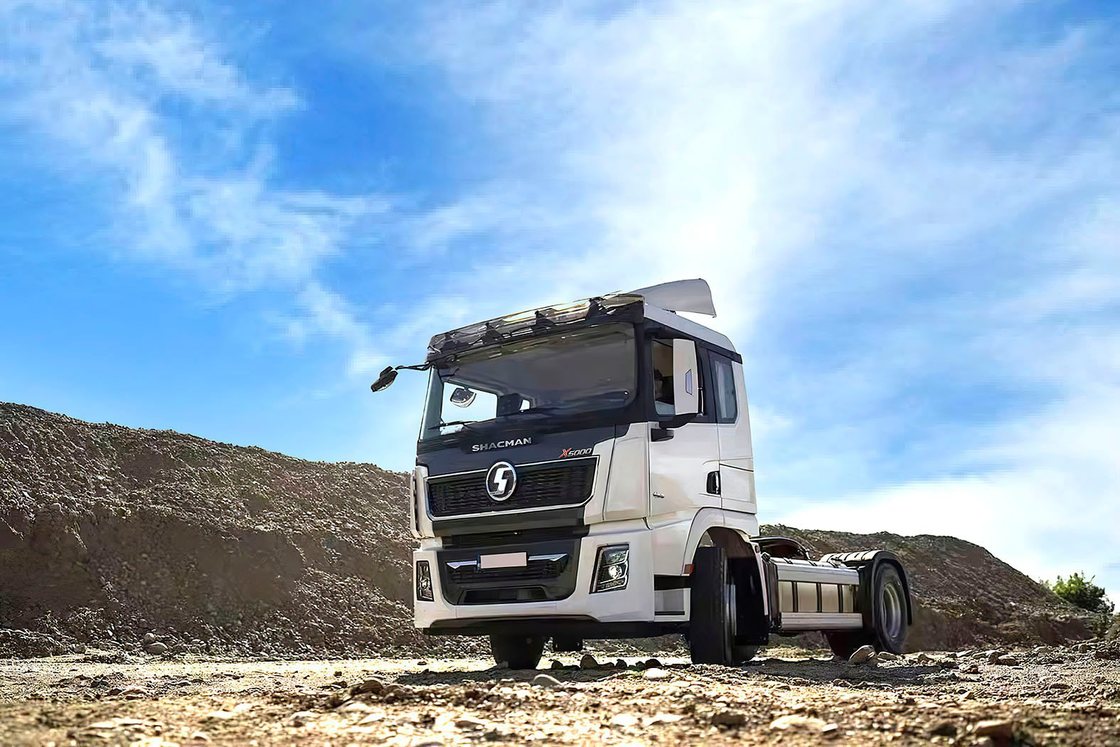

Name: SHACMAN X5000 Tractor Head with 400L Fuel Tank 12R22.5 Tires and WEICHAI Engine 6x4 460HP EuroV Red
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: X5000
Price: 42.00 USD
Availability: InStock

صفحه اصلی > محصولات > کامیون تراکتور >

SHACMAN X5000 Tractor Head with 400L Fuel Tank 12R22.5 Tires and WEICHAI Engine 6x4 460HP EuroV Red

400L Fuel Tank Tractor Head,12R22.5 Tires Truck Tractor Head,WEICHAI Engine SHACMAN X5000 Tractor

12R22.5 Tires Truck Tractor Head

WEICHAI Engine SHACMAN X5000 Tractor

محل منبع:

شانکسی ، شیان

نام تجاری:

SHACMAN

گواهی:

ISO9001/CCC

شماره مدل:

X5000

با ما تماس بگیرید

درخواست نقل قول

SHACMAN X5000 Tractor Head with 400L Fuel Tank 12R22.5 Tires and WEICHAI Engine 6x4 460HP EuroV Red

جزئیات محصول

مودل:

SX42584X324

موتور:

WP12.460E50

انتقال:

12JSD200T-B

محور:

7.5T /2*13 T دو مرحله ای، نسبت سرعت-4.769

پایه چرخ:

3175 + 1400 میلی متر

لاستیک:

12R22.5

مخزن سوخت:

400L

کلاچ:

کلاچ بهار دیافراگم φ430

ورودی هوا:

فیلتر هوای معمولی

شاسی:

(940-850)X300 (تک نفره 8)

تعلیق:

فنر صفحه چند لایه جلو / عقب

کابین:

سقف بلند توسعه یافته

رنگ:

نئون قرمز/سبز کوهستان سبز/ستاره و آبی ماه/آرورا سفید/کلاین آبی/براندی

برجسته کردن:

400L Fuel Tank Tractor Head,12R22.5 Tires Truck Tractor Head,WEICHAI Engine SHACMAN X5000 Tractor

12R22.5 Tires Truck Tractor Head

WEICHAI Engine SHACMAN X5000 Tractor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

negotiable

جزئیات بسته بندی

بسته برهنه، با موم قبل از حمل و نقل.

زمان تحویل

30 روز کاری

شرایط پرداخت

T/T ، L/C

قابلیت ارائه

5000 واحد در ماه

محصولات مرتبط

با ما تماس بگیرید

اکنون تماس بگیرید

توضیحات محصول

SHACMAN X5000 Tractor Head 6x4 460HP EuroV Red Truck Tractor Head

Detailed Product Description

Model: SX42584X324
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.460E50
Engine Power: 338kw / 460Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B

Tractor Truck Parameters

Model	SX42584X324
Drive type	6x4
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase/(mm) 3175+1400
Performance	Maximum speed/(km/h) 45～60/90
Ground clearance	>314
Engine Brand	WEICHAI
Engine Model	WP12.460E50
Engine Power	338kw / 460Hp
Maximum torque	2110 N*M
Displacement	12.596 L
Emission standard	Euro V
Gear box Brand	FAST
Gear box Model	12JSD200T-B
Clutch Type	φ430 Diaphragm spring clutch
Cooling Type	Domestic heat sink
Air inlet Type	Ordinary air filter
Brakes Type	Drum brake
Service brake	Double circuit air brake
Park brake	Rear wheel spring brake
Auxiliary brake	WEVB engine exhaust brake
Steering Type	ZF8098 technology, circulating ball steering machine
Chassis Type	Parallel trapezoidal frame with variable section
Chassis Dimensions	(940-850)X300(single 8)
Suspension Front	Multi-layered leaf springs
Suspension Rear	Multi-layered leaf springs
Axles Brand	HANDE
Front axle	7.5T front axle MAN technology
Rear axle	13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type	12R22.5
Fuel tank capacity	400L Aluminum tank
Electrics Type	24V
Battery	165Ah Maintenance-free battery
Cab Type	SHACMAN X5000 Extended High Roof cab
Cab Equipment	Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Tractor Truck Advantages

The X5000 tractor is equipped with a more powerful 460-horsepower engine that provides extra power for demanding transport tasks. The added horsepower improves acceleration, climbing ability, and overall performance.
SHACMAN trucks prioritize driver comfort, and the X5000 is no exception. The cabin is designed to provide a comfortable and ergonomic environment with air conditioning, adjustable seating and ample storage space. This helps reduce driver fatigue during long journeys, contributing to a safer and more enjoyable driving experience.
