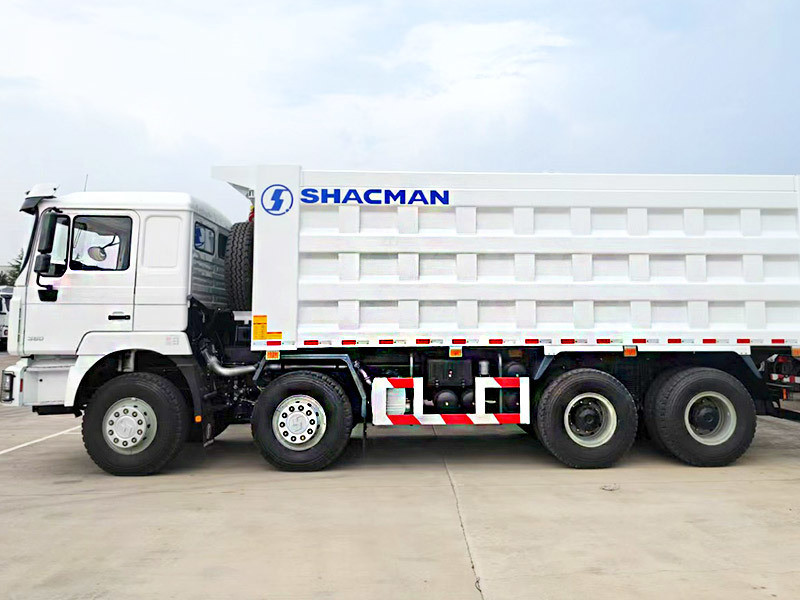

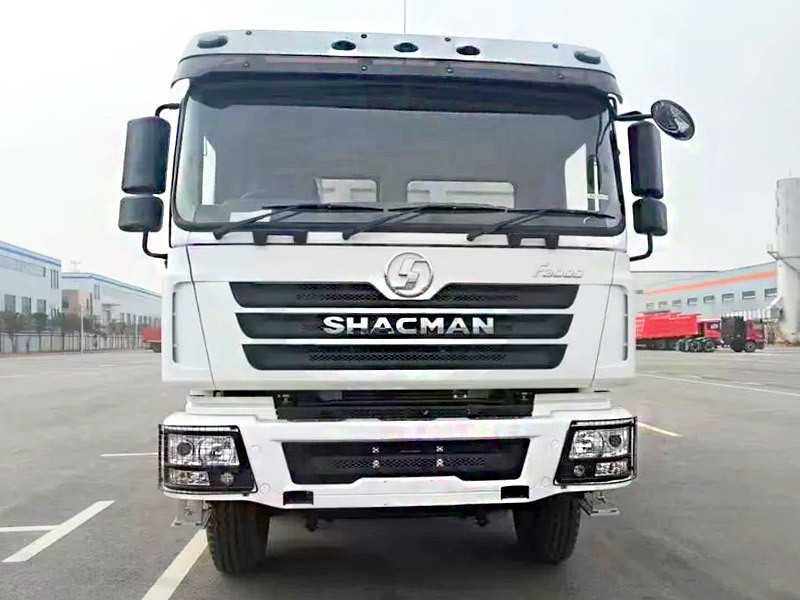

Name: SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

صفحه اصلی > محصولات > کامیون کمپرسی سنگین >

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

300L Fuel Tank Tipper Truck,12.00R20 Tires Dump Truck,Domestic Heavy Dump Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

محل منبع:

شانکسی ، شیان

نام تجاری:

SHACMAN

گواهی:

ISO 9001/CCC

شماره مدل:

F3000

با ما تماس بگیرید

درخواست نقل قول

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

جزئیات محصول

مودل:

SX3318DV366

موتور:

WP12.430E50-WEICHAI

انتقال:

12JSD200T-B+QH50-FAST

محور:

9.5T /2*16T دو مرحله ای، نسبت سرعت-4.769

پایه چرخ:

1800+3575+1400 میلی متر

لاستیک:

12.00 R20 (10+1)

مخزن سوخت:

300L

کلاچ:

کلاچ بهار دیافراگم φ430

ورودی هوا:

فیلتر هوای معمولی

شاسی:

850×300 (8+7)

تعلیق:

صفحه چند لایه جلو /عقب بهار 4 صفحات اصلی + 4 پیچ U شکل

کابین:

رویه تخت با طول متوسط

رنگ:

نئون قرمز/سبز کوهستان سبز/ستاره و آبی ماه/آرورا سفید/کلاین آبی/براندی

برجسته کردن:

300L Fuel Tank Tipper Truck,12.00R20 Tires Dump Truck,Domestic Heavy Dump Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

negotiable

جزئیات بسته بندی

بسته برهنه، با موم قبل از حمل و نقل.

زمان تحویل

45 روز کاری

شرایط پرداخت

T/T ، L/C

قابلیت ارائه

1000 واحد در ماه

محصولات مرتبط

با ما تماس بگیرید

اکنون تماس بگیرید

توضیحات محصول

SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper

Product Overview

The SHACMAN F3000 Dump Truck is a robust 8x4 tipper designed for heavy-duty material transportation. Featuring a 430HP EuroV compliant engine and domestic front lift mechanism, this truck combines power with environmental responsibility.

Key Specifications

Model: SX3318DV366

Drive Type: 8x4

Engine: WEICHAI WP12.430E50

Power: 316kw / 430Hp

Transmission: FAST 12JSD200T-B+QH50

Emission Standard: Euro V

Technical Specifications

Category	Specification
Weight	Gross Vehicle Weight ≤70
Dimensions	Wheelbase: 1800+3575+1400 mm
Performance	Maximum speed: 40～55/75 km/h Ground clearance: >314 mm
Engine	WEICHAI WP12.430E50 316kw / 430Hp 2050 N*M maximum torque 11.596 L displacement
Drivetrain	FAST 12JSD200T-B+QH50 gearbox φ430 Diaphragm spring clutch
Braking System	Drum brakes Double circuit air brake (Service) Rear wheel spring brake (Park) WEVB engine exhaust brake (Auxiliary)
Chassis & Suspension	Parallel trapezoidal frame (850×300(8+7) mm) Multi-layered leaf springs (Front: 4 Main+4 U Bolts, Rear: 4 Main+4 U Bolts)
Axles	HANDE 9.5T front axle (MAN technology) 16T MAN Double Reduction Drive rear axle (4.769 ratio)
Other Components	12.00R20 tires 300L Aluminum fuel tank 24V electrical system with 165Ah battery
Cab Features	F3000 Medium-length flat cab Hydraulic main seat Four-point hydraulic suspension Electronically controlled automatic AC Electric windows

Key Advantages

Robust Construction: Heavy-duty chassis and suspension system provide excellent load-bearing capacity and stability for safe transportation on rough terrain.
Eco-Friendly: Complies with strict Euro V emission standards, significantly reducing nitrogen oxides (NOx) and particulate matter (PM) emissions.
