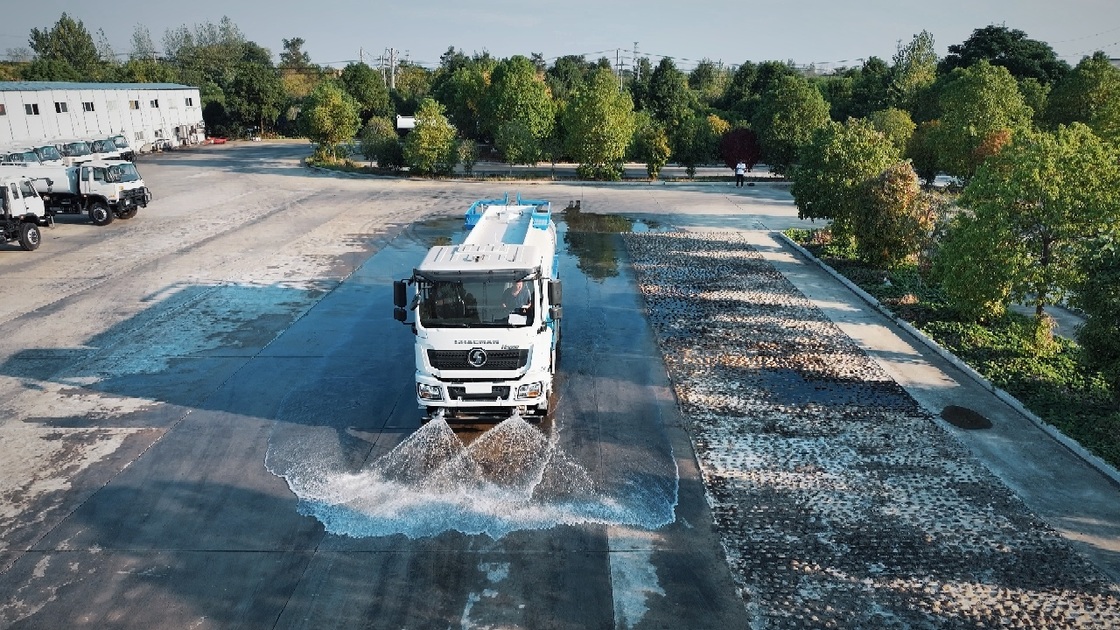

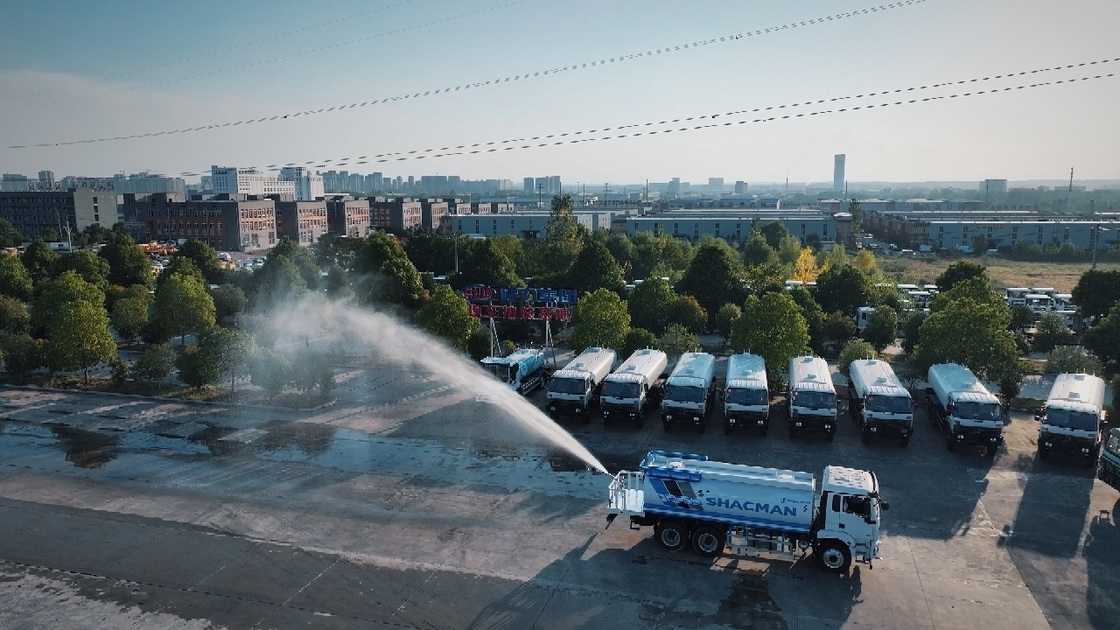

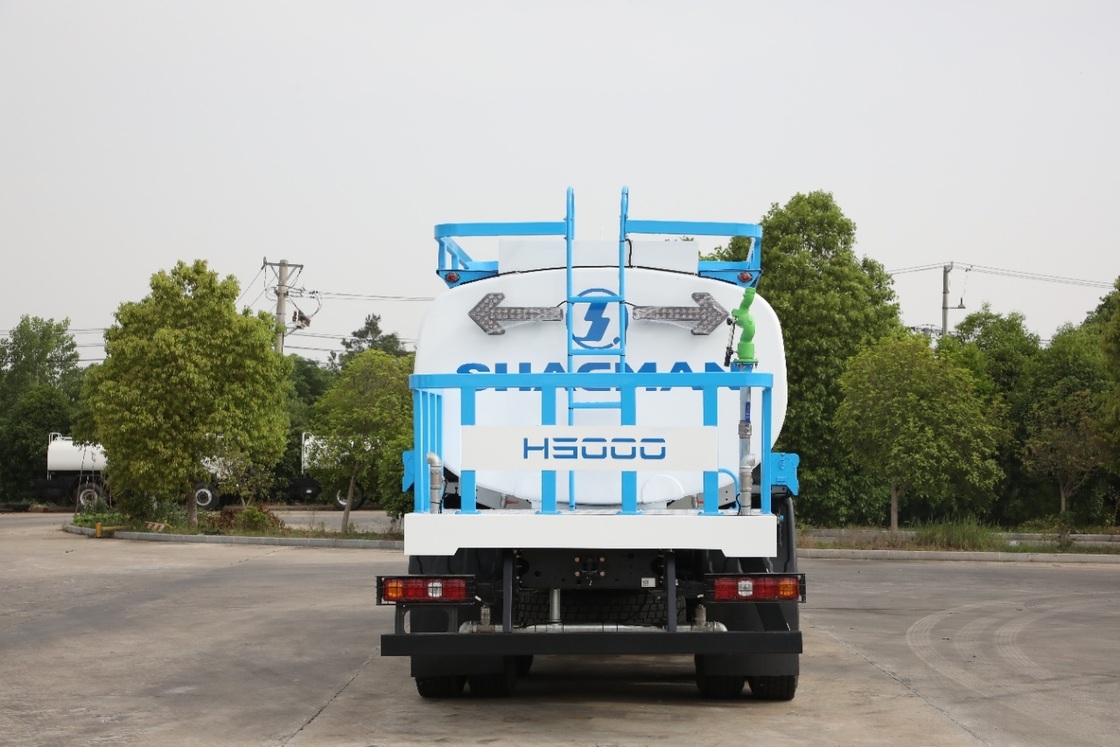

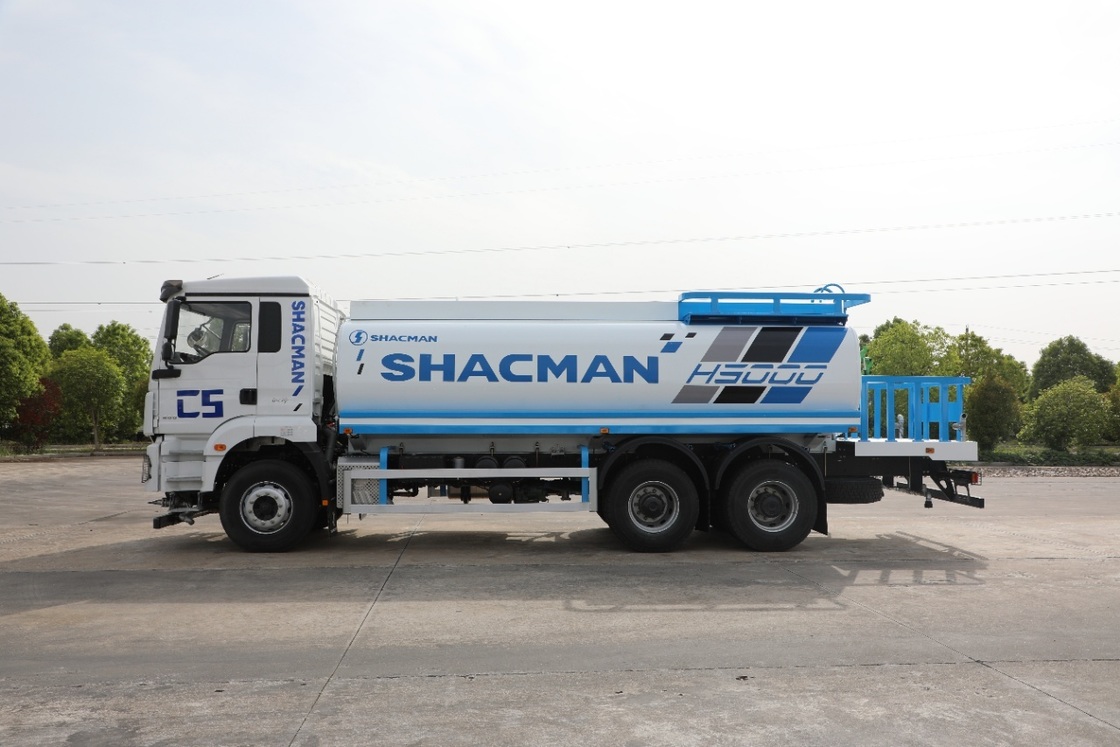

Name: SHACMAN H3000 4X2 Water Truck with 336HP Engine 10m³ Tank and Left-hand Drive Euro Ⅲ
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: SX5185GYSMN461
Price: 1,000.00 USD
Availability: InStock

صفحه اصلی > محصولات > کامیون کمپرسی سنگین >

SHACMAN H3000 4X2 Water Truck with 336HP Engine 10m³ Tank and Left-hand Drive Euro Ⅲ

336HP Water Truck,10m³ Tank Dump Truck,Left-hand drive Heavy Duty Truck

10m³ Tank Dump Truck

Left-hand drive Heavy Duty Truck

محل منبع:

چین

نام تجاری:

SHACMAN H3000

شماره مدل:

SX5185GYSMN461

با ما تماس بگیرید

درخواست نقل قول

SHACMAN H3000 4X2 Water Truck with 336HP Engine 10m³ Tank and Left-hand Drive Euro Ⅲ

جزئیات محصول

اسب بخار:

251 - 350 اسب بخار، 351 - 450 اسب بخار، 375 اسب بخار

چرخ:

6x4,8x4,4x2

وزن ناخالص:

25000,50000,12500,31000,16105

وضعیت:

جدید

استاندارد انتشار:

یورو 2، یورو 3، یورو 5

ظرفیت (بار):

31 - 40t,21 - 30t,41 - 50t,1 - 10t,11 - 20t

رنگ:

زرد، قرمز، سفید، آبی، سبز

برجسته کردن:

336HP Water Truck,10m³ Tank Dump Truck,Left-hand drive Heavy Duty Truck

10m³ Tank Dump Truck

Left-hand drive Heavy Duty Truck

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

T/T

محصولات مرتبط

با ما تماس بگیرید

اکنون تماس بگیرید

توضیحات محصول

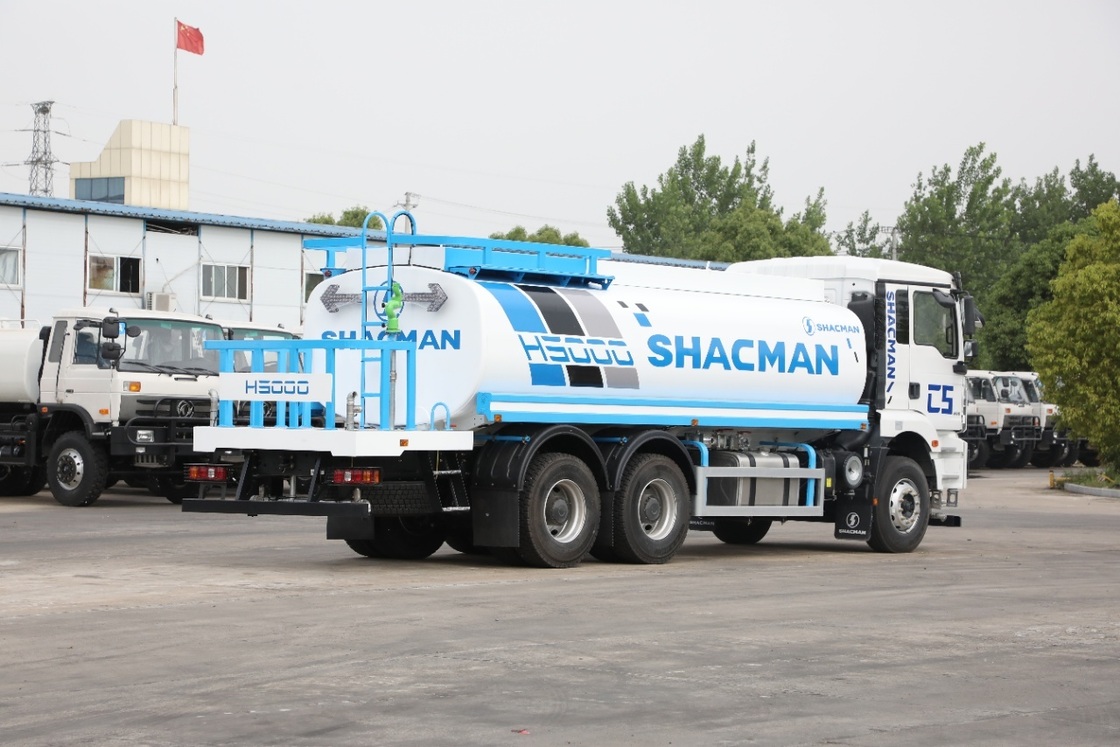

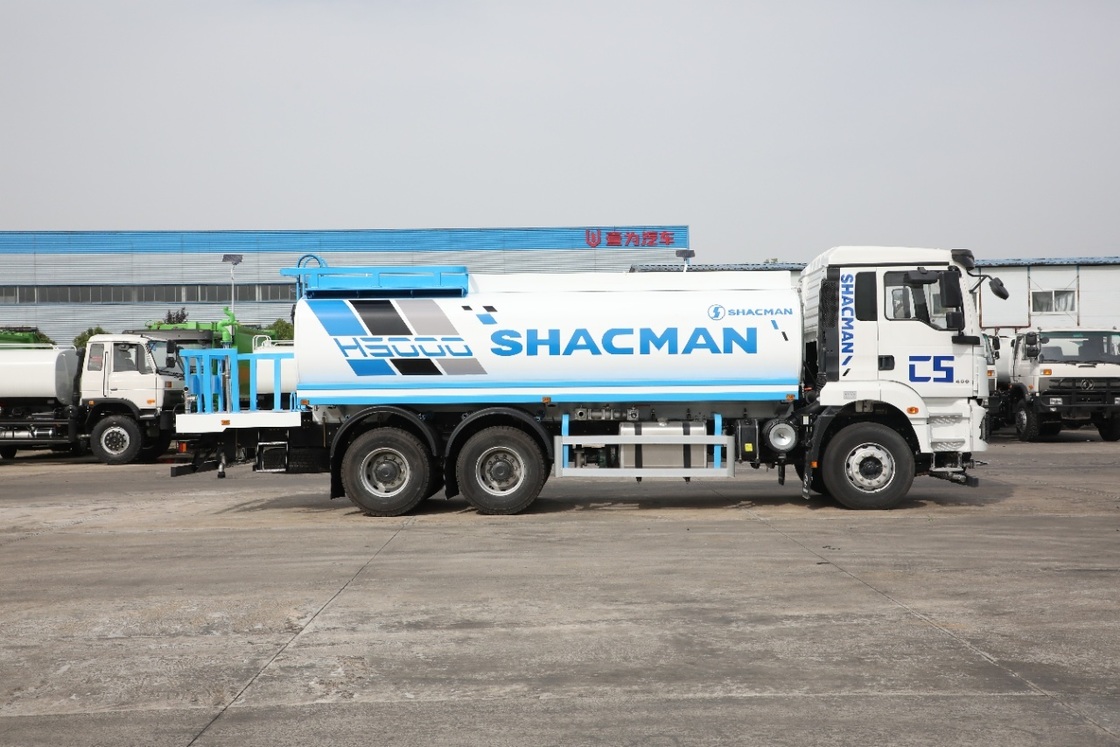

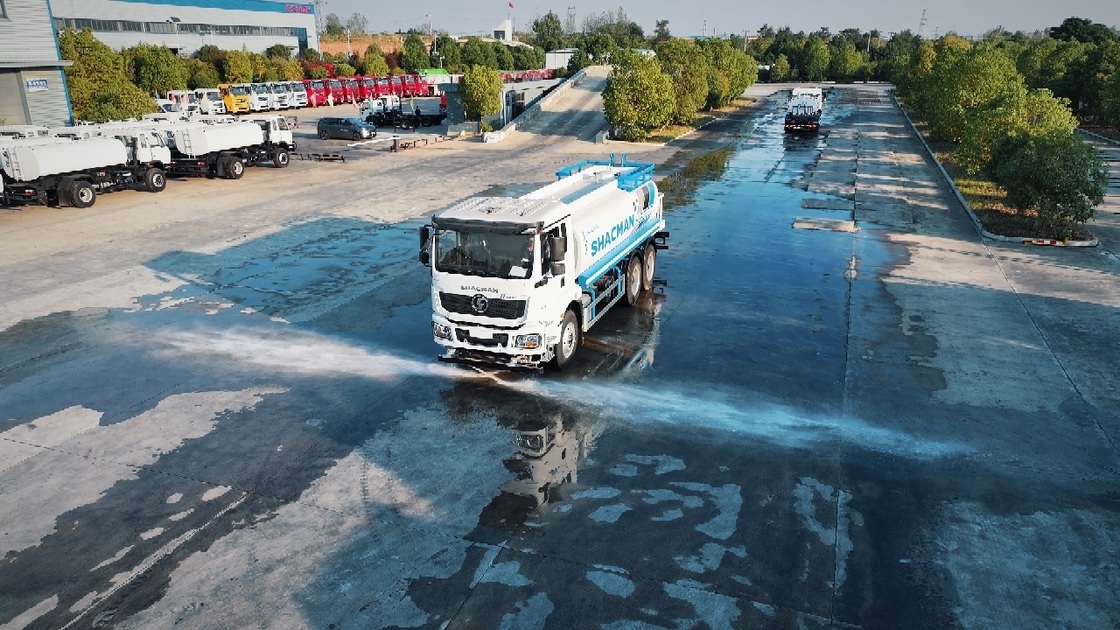

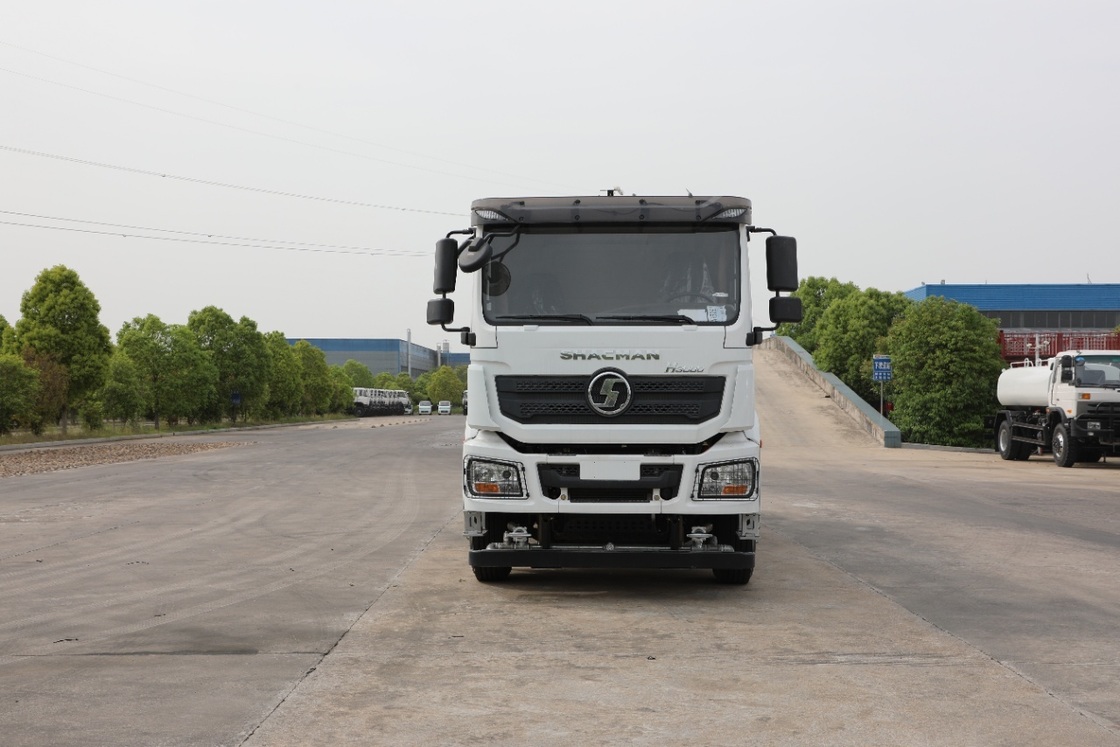

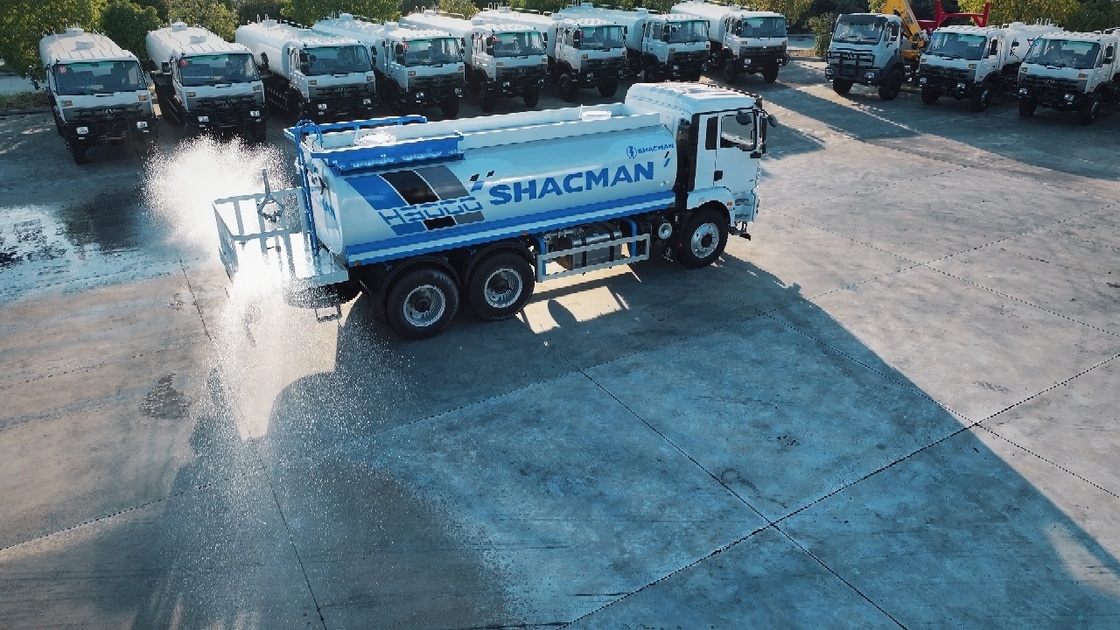

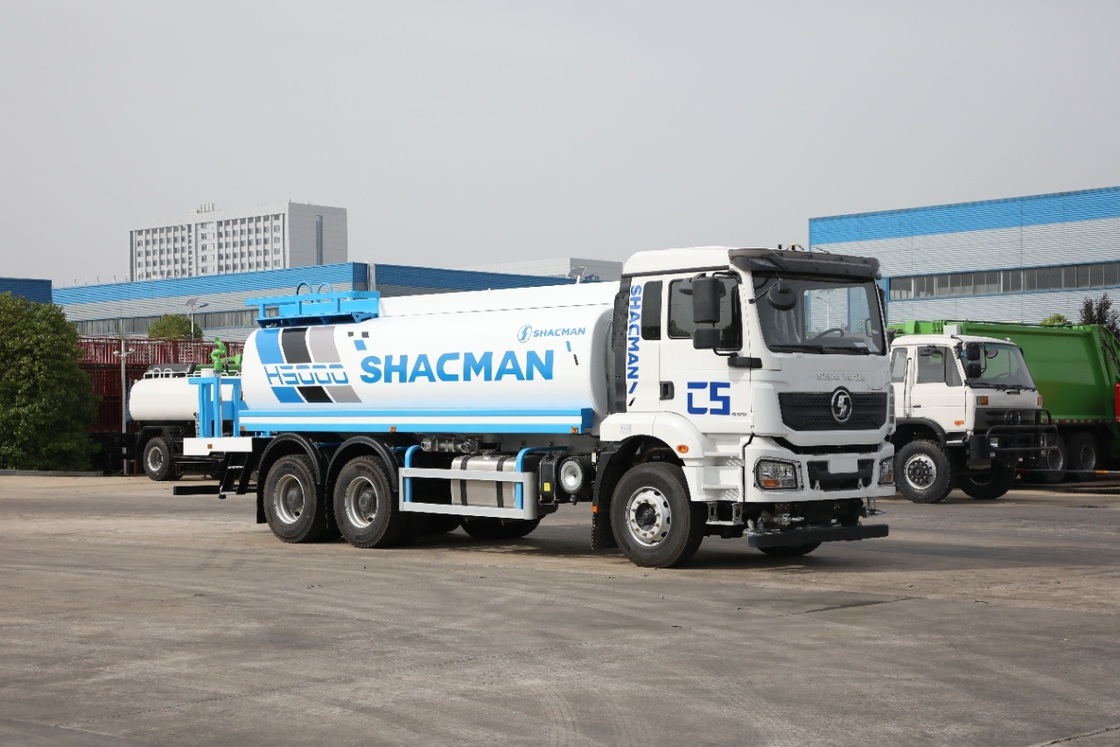

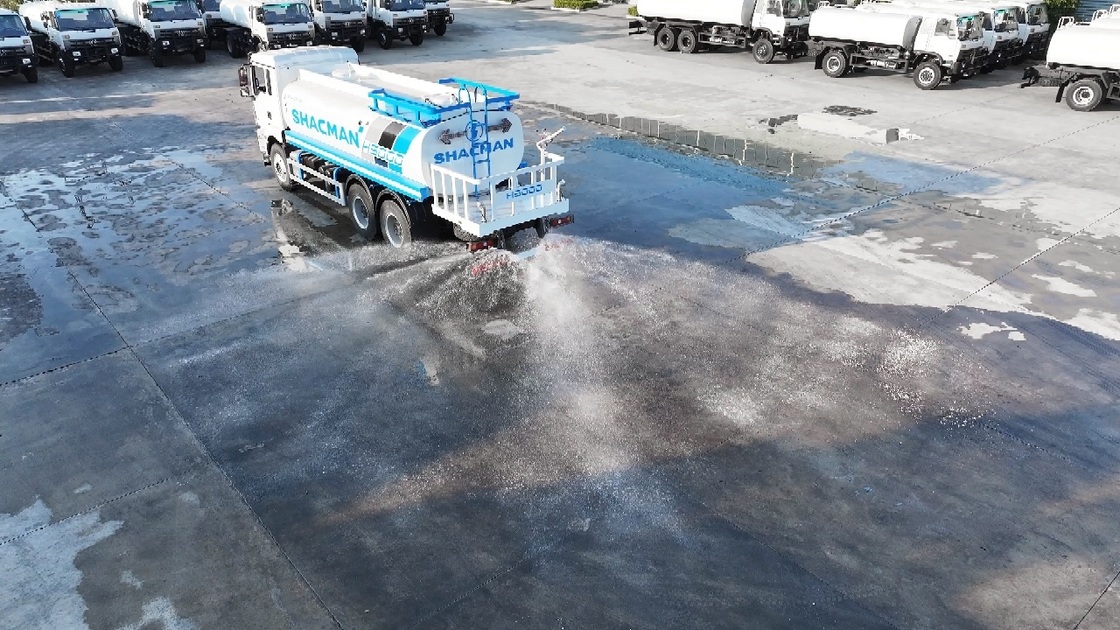

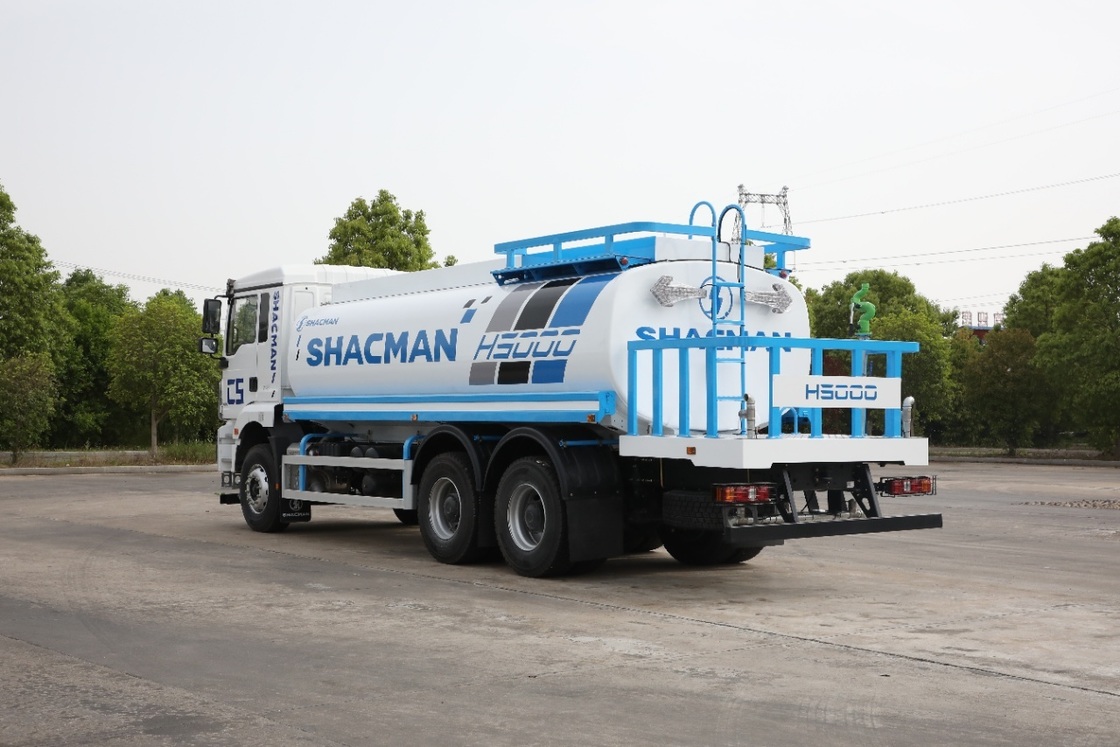

SHACMAN H3000 4X2 Water Truck Euro Ⅲ Left-hand drive

Main Specifications

Model	SX5185GYSMN461
Drive type	4X2
Wheelbases	4600mm
Rear overhang	1900mm
Driving position	Left-hand drive
Economic speed/Maximum speed	50～70/90 km/h
GVW	≤20T

Engine Specifications

Brand	WEICHAI
Model	WP10.336
Horsepower	336HP
Emission standards	Euro Ⅲ

Transmission & Chassis

Gear box brand	FAST
Gear box model	RTD-11509C+QH50 PTO (9 forward gears, 1 reverse gear)
Chassis dimensions	850*300(8+5)mm
Suspension	Front and rear multi-leaf springs (two riding horses + two main pieces)
Braking method	Disc brakes

Axles & Tires

Axle brand	HANDE
Front axle	7.5T front axle
Rear axle	13T dual-stage reduction axle
Speed ratio	5.262
Tires	13R22.5 (6+1)

Cab Features

H3000 Standard Cab
Four-point hydraulic mount
Hydraulic main seat
Electric window regulator
Manual flip
Electric air conditioner

Additional Configurations

Oil bath air filter
Domestic four-channel ABS
Normal steering wheel
Metal bumpers
Two-stage boarding pedal
165Ah maintenance-free battery
Spare tire rack
SHACMAN logo
All English signs
Truck toolbox
Jack 32T
Reflective vest
Warning triangle
Fire extinguisher 2kg

Water Tank Configuration

Effective volume	10m³
Tank body shape	Oval
Tank material	Food-grade stainless steel SUS304-2B
Number of wave deflectors	2
Thickness of wave deflector	4mm
Welding technology	Argon arc welding process
Valve material	SUS304 butterfly valve
Tank body and mouth	1 DN500 stainless steel
Pipe material	SUS304 stainless steel
Water addition method	Self suction/fire water supply/tank top
Inside the tank	Acid pickling and passivation treatment
Supporting system	Reinforcement of auxiliary beams

Pump & Control System

Truck-mounted pump	Hangzhou Weilong 40/45 stainless steel car mounted pump with water level gauge and flow meter
Control ball valve	Stainless steel
Control mode	Pneumatic control in the cab
Main pipeline diameter	50
Auxiliary pipeline diameter	50

Additional Water Truck Features

Bilateral plastic round barrel
Aluminum alloy side protection
Fixed raise fence
Stainless steel rear climbing ladder
Enhanced engineering post protection
Horse riding bolt (color plated) M16
Carbon steel homemade mudguard
Stainless steel pump box
Pump into stainless steel filter
2 ordinary 5-meter steel wire hoses
DN63 clamp butterfly valve
Electrophoresis (standard primer) Baking paint (topcoat process)
